DAB5 series Miniature Circuit breaker(MCB)

>> Introduction

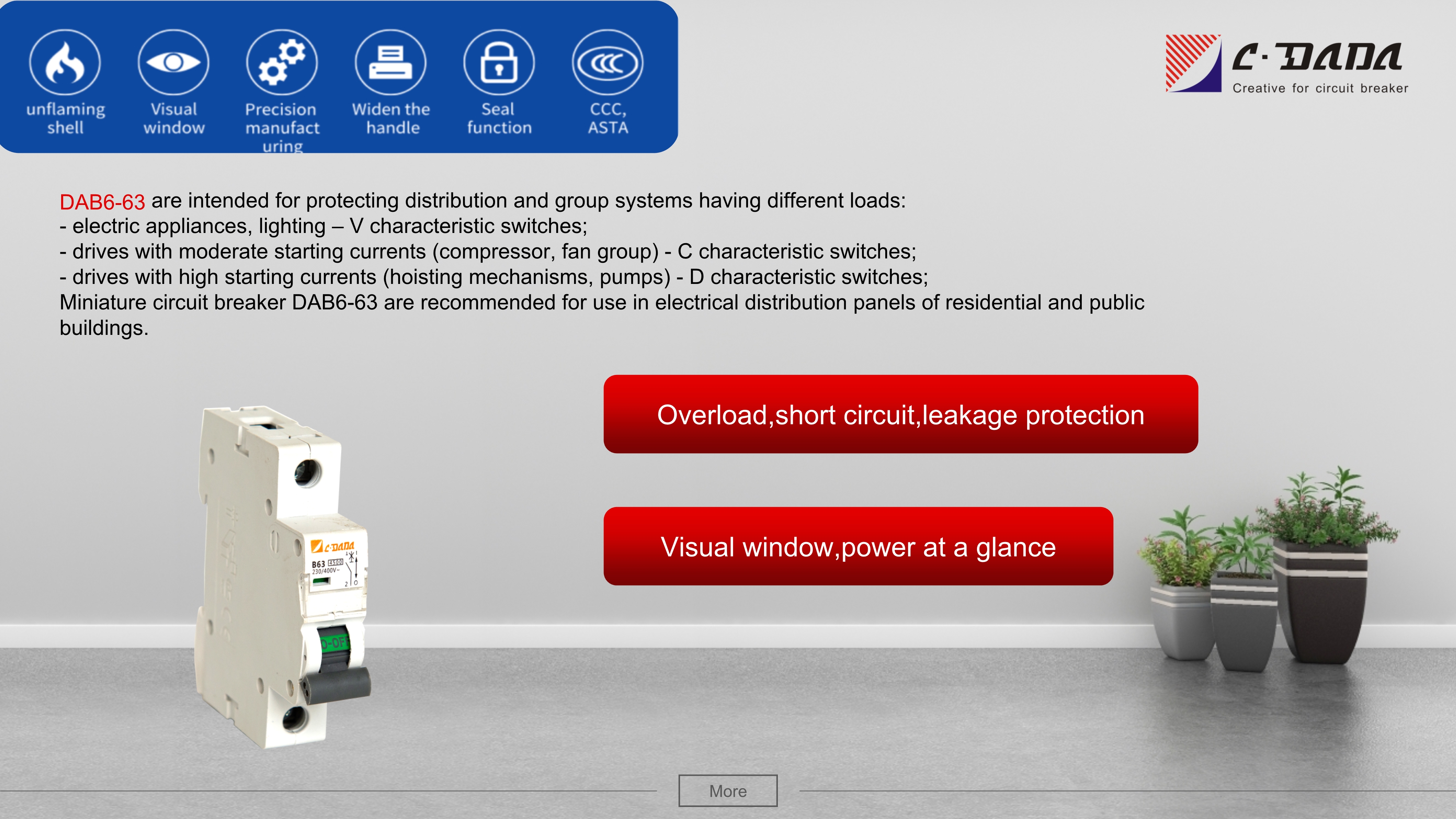

DAB5-63  are intended for protecting distribution and group systems having different loads:
- electric appliances, lighting – V characteristic switches;
- drives with moderate starting currents (compressor, fan group) - C characteristic switches;
- drives with high starting currents (hoisting mechanisms, pumps) - D characteristic switches;
Miniature circuit breaker DAB5-63 are recommended for use in electrical distribution panels of residential and public buildings.

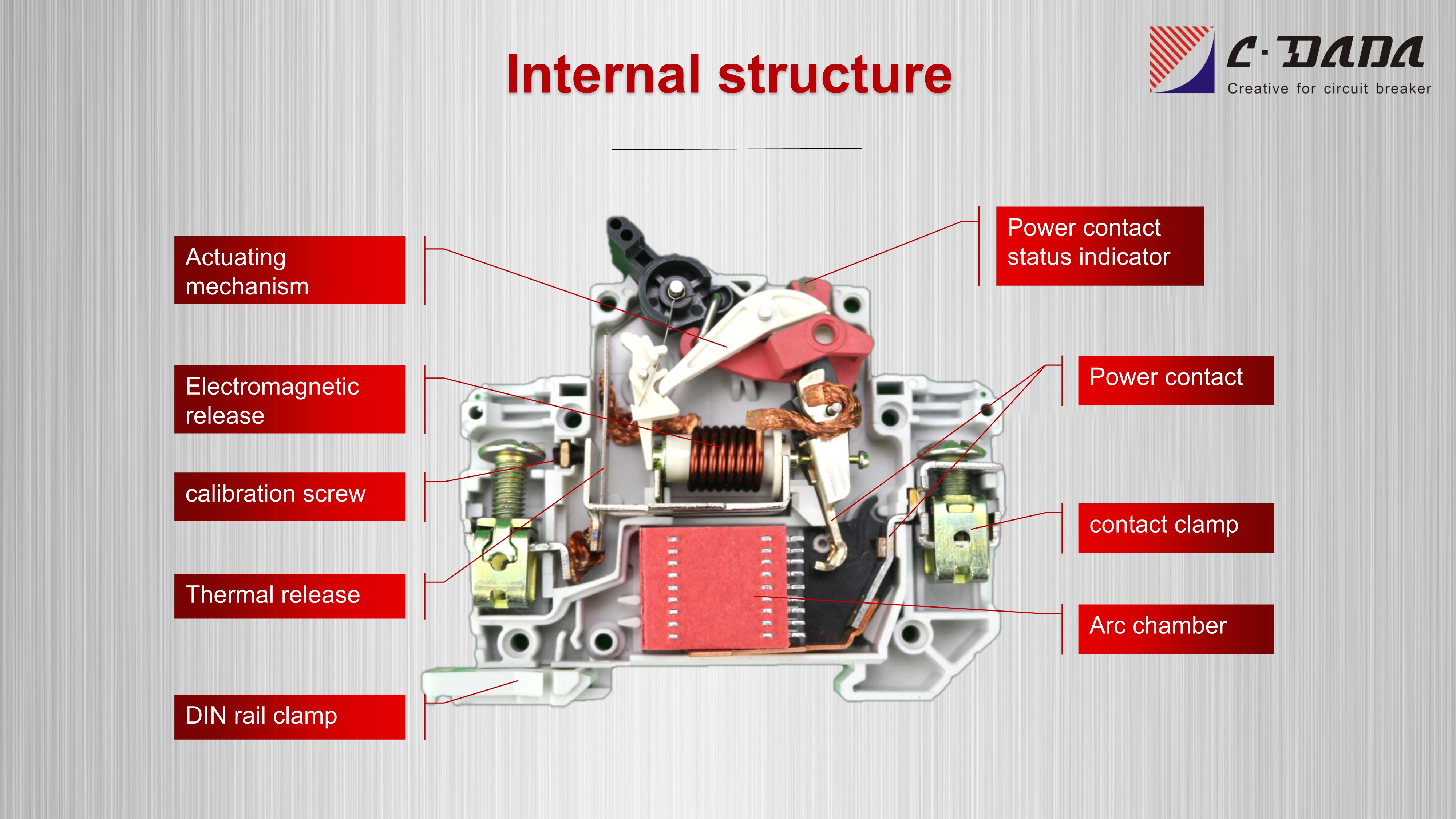

>> Advantages

· Two types of short circuit protection.

· Wide range of operating temperatures from –40 to +50° С.

· Updated wider engagement lever with improved contact area.

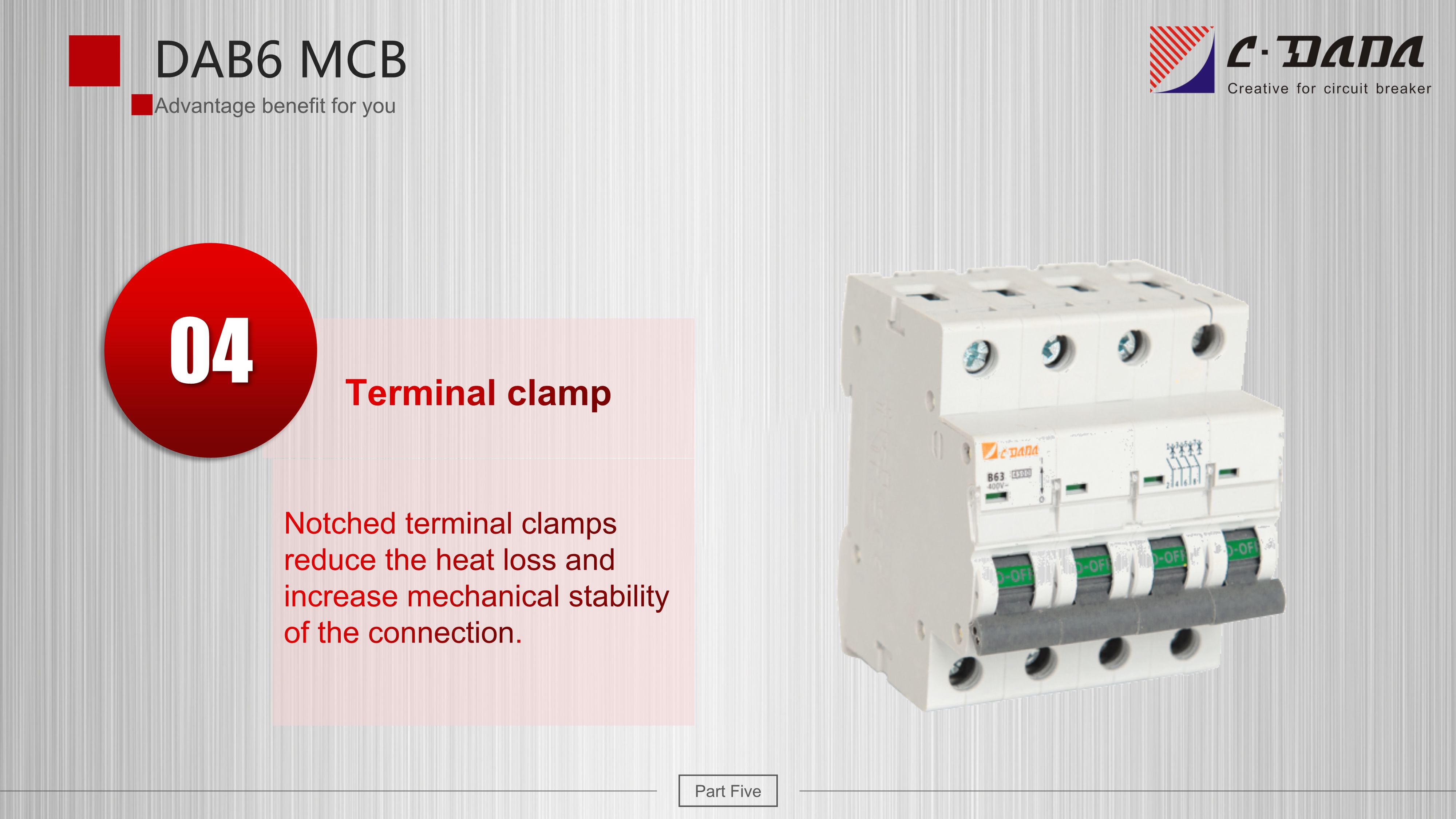

· Notches on terminal clamps provide for lowering thermal losses and boosting the mechanical stability of connection.

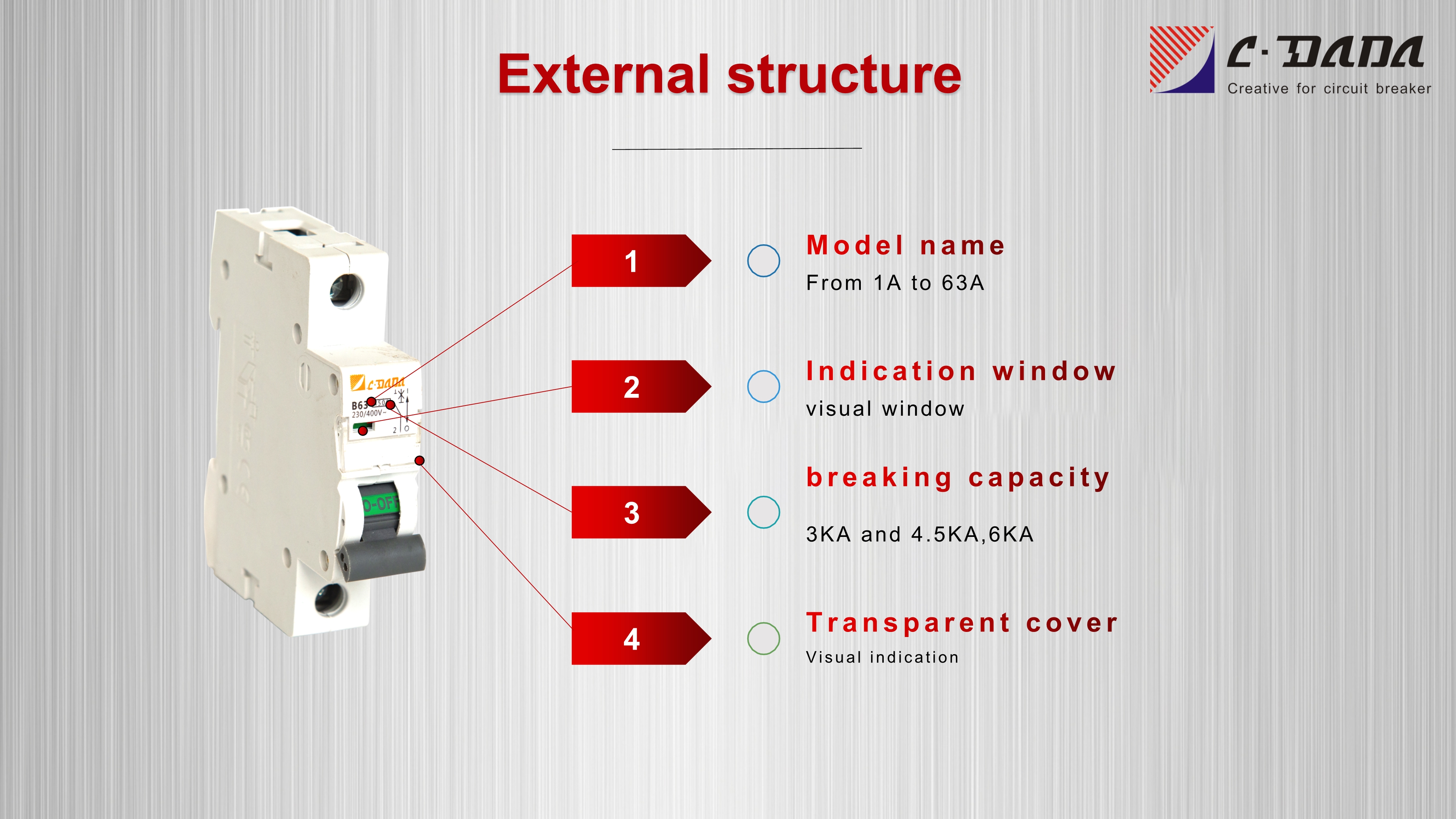

MCB DAB5-63
For protection of general power distribution (IEC/EN 60898-1)

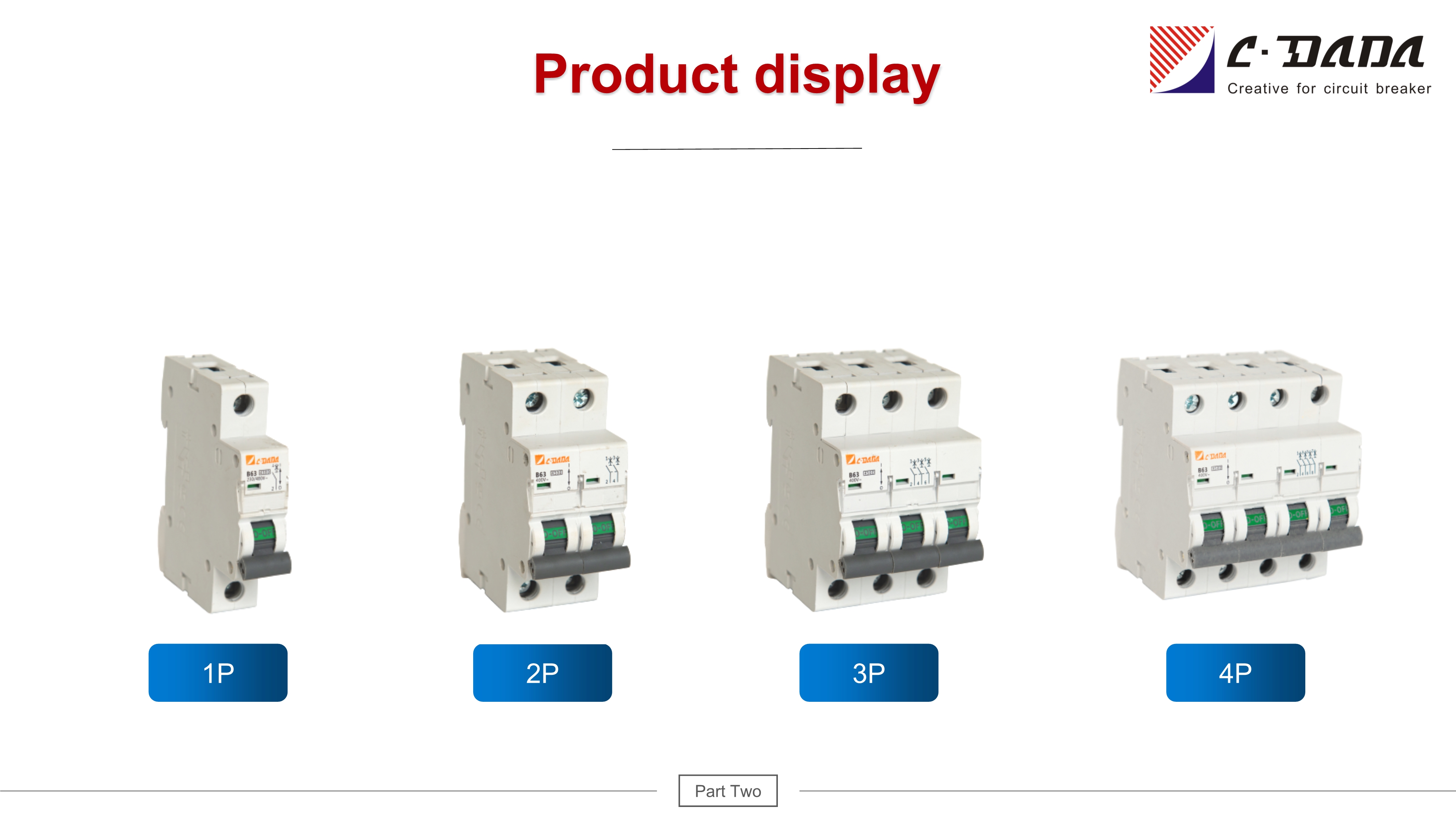

Poles			1P	2P	3P	4P

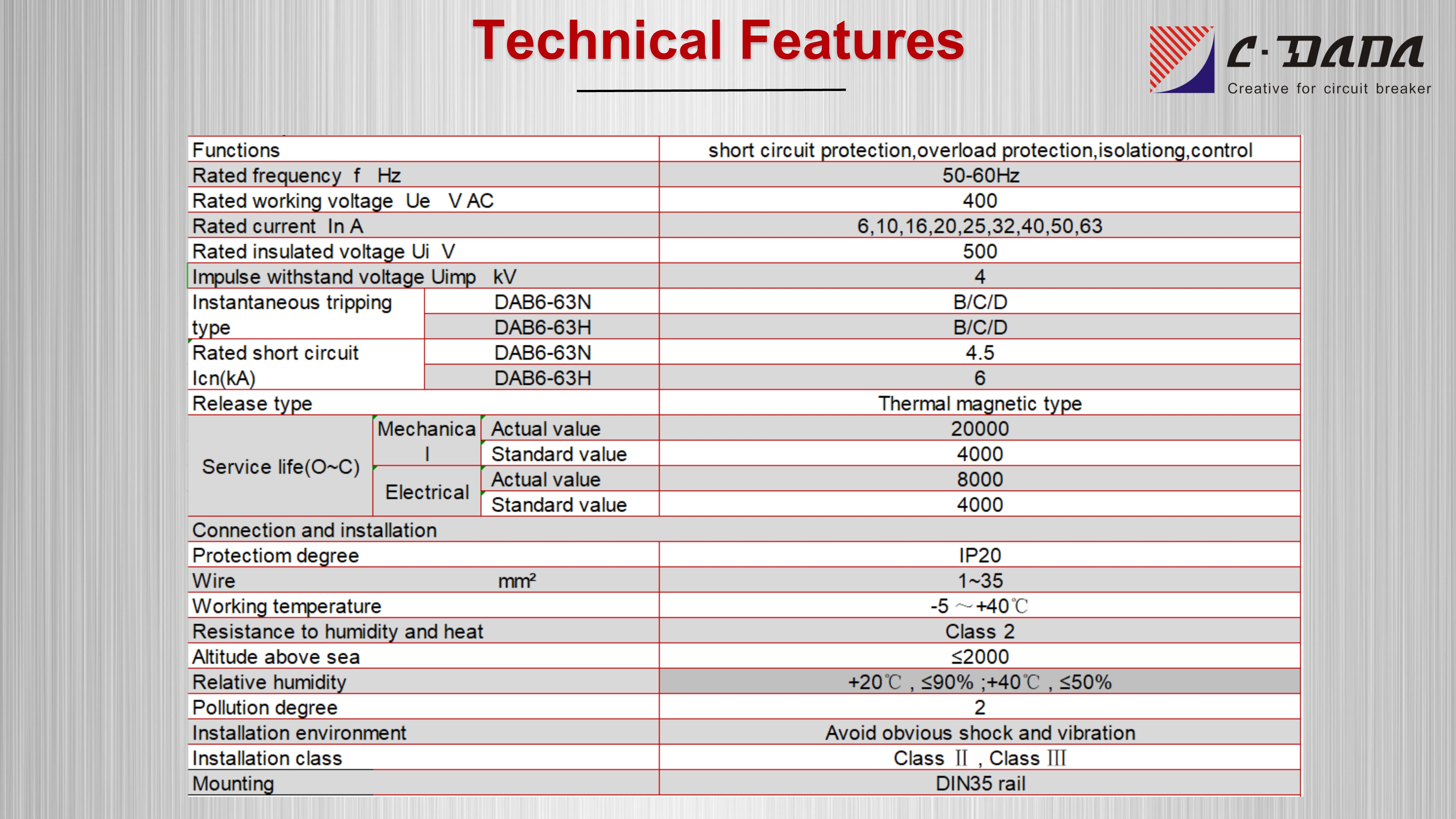

Electrical performance
Functions			short circuit protection,overload protection,isolationg,control
Rated frequency f (Hz)			50-60Hz
Rated working voltage Ue V AC			230/400	400
Rated current In(A)			6,10,16,20,25,32,40,50,63
Rated insulated voltage Ui (V)			500
Impulse withstand voltage Uimp (kV)			4
Instantaneous tripping type	DAB5-63N		B/C/D
	DAB5-63H		B/C/D
Rated short circuit Icn(kA)	DAB5-63N		4.5
	DAB5-63H		6
Release type			Thermal magnetic type
Service life(O~C)	Mechanical	Actual value	20000
		Standard value	4000
	Electrical	Actual value	8000
		Standard value	4000
Connection and installation
Protectiom degree			IP20
Wire                                             mm²			1~35
Working temperature			-5 ～+40℃
Resistance to humidity and heat			Class 2
Altitude above sea			≤2000
Relative humidity			+20℃ , ≤90% ;+40℃ , ≤50%
Pollution degree			2
Installation environment			Avoid obvious shock and vibration
Installation class			Class Ⅱ , Class Ⅲ

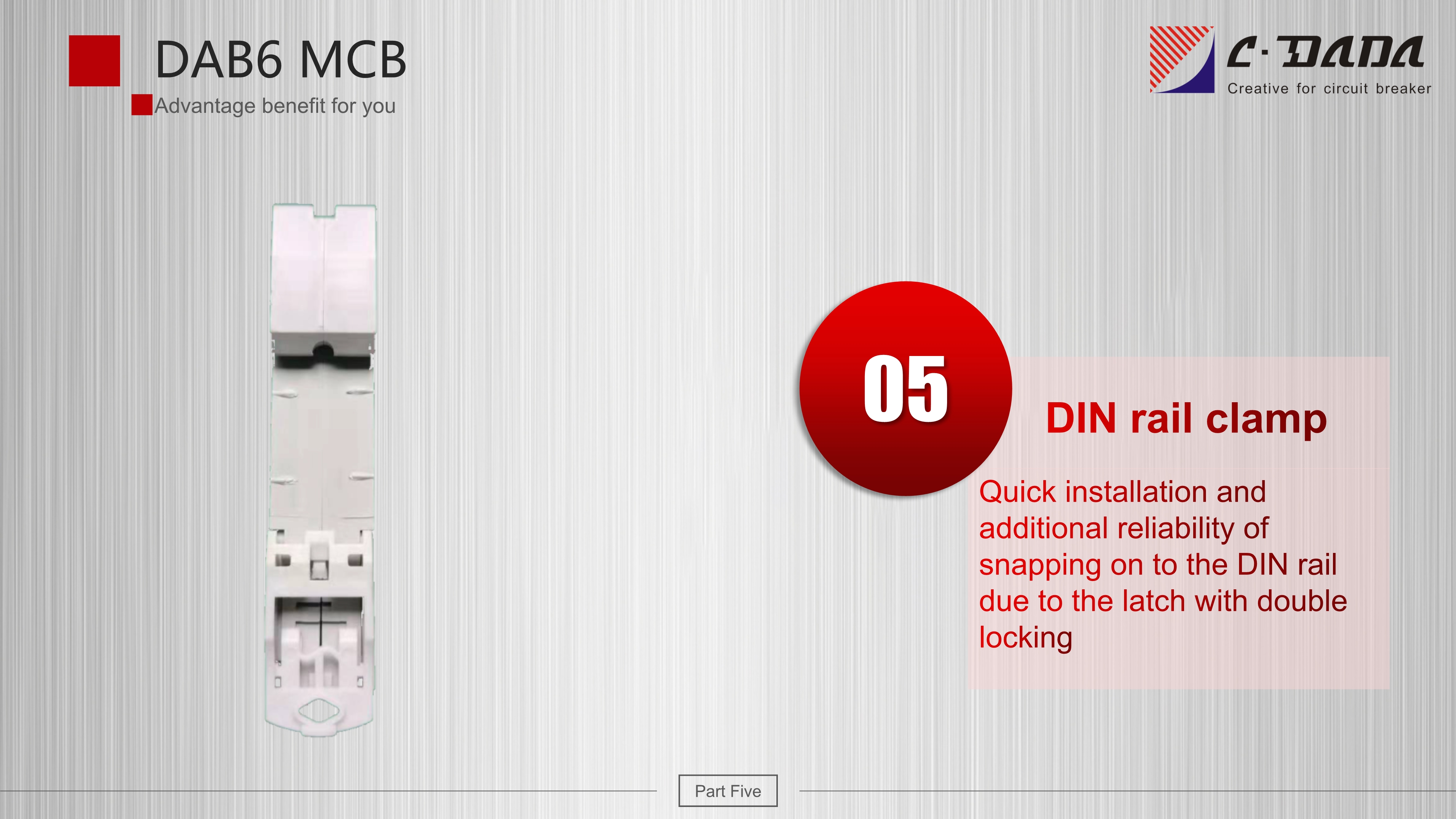

Mounting			DIN35 rail
Combination with accessories
Auxiliary contact			Yes
Alarm contact			Yes
Shunt release			Yes
Undervoltage release			Yes
Auxiliary contact+Alarm contact			Yes
Dimensions(mm) (WxHxL)		a	17.5	35	52.5	70
		b	80.2	80.2	80.2	80.2
		c	76.5	76.5	76.5	76.5
