In the world of electrical safety, the terms RCCB (Residual Current Circuit Breaker) and RCBO (Residual Current Circuit Breaker with Overcurrent Protection) are often used. Both devices play a vital role in protecting circuits from faults, but their functions are very different. Shanghai Dada Electrical Co., Ltd. is committed to clearly explaining these important components to ensure that our customers can make informed decisions about their electrical systems.

RCCB: Overview

RCCB is mainly used to prevent ground faults. It detects if the current flowing through the live and neutral wires is unbalanced. When a fault occurs, such as a short circuit or leakage current caused by insulation failure, the RCCB quickly disconnects the circuit to prevent electric shock or fire. The main function of the RCCB is to provide protection against electric shock and ensure the safety of people using electrical appliances.

The rating of an RCCB depends on its sensitivity to leakage current, usually measured in milliamperes (mA). Common sensitivity levels include: 30mA for personal protection, 100mA or 300mA for equipment protection. It is important to select the appropriate sensitivity level based on the specific application and the required level of protection.

RCBO: A comprehensive solution

On the other hand, RCBOs combine the functions of both RCCBs and miniature circuit breakers (MCBs). This dual functionality enables RCBOs to provide both ground fault protection and overcurrent protection. Essentially, RCBOs not only detect leakage currents, but also protect against overloads and short circuits, making them a versatile choice for modern electrical installations.

The working principle of RCBO is similar to that of RCCB, which monitors the current flowing through the circuit. In addition, it is equipped with a mechanism to trip in case of overload or short circuit, thus providing comprehensive protection. This makes RCBO an ideal solution for space-constrained applications as it can replace both RCCB and MCB.

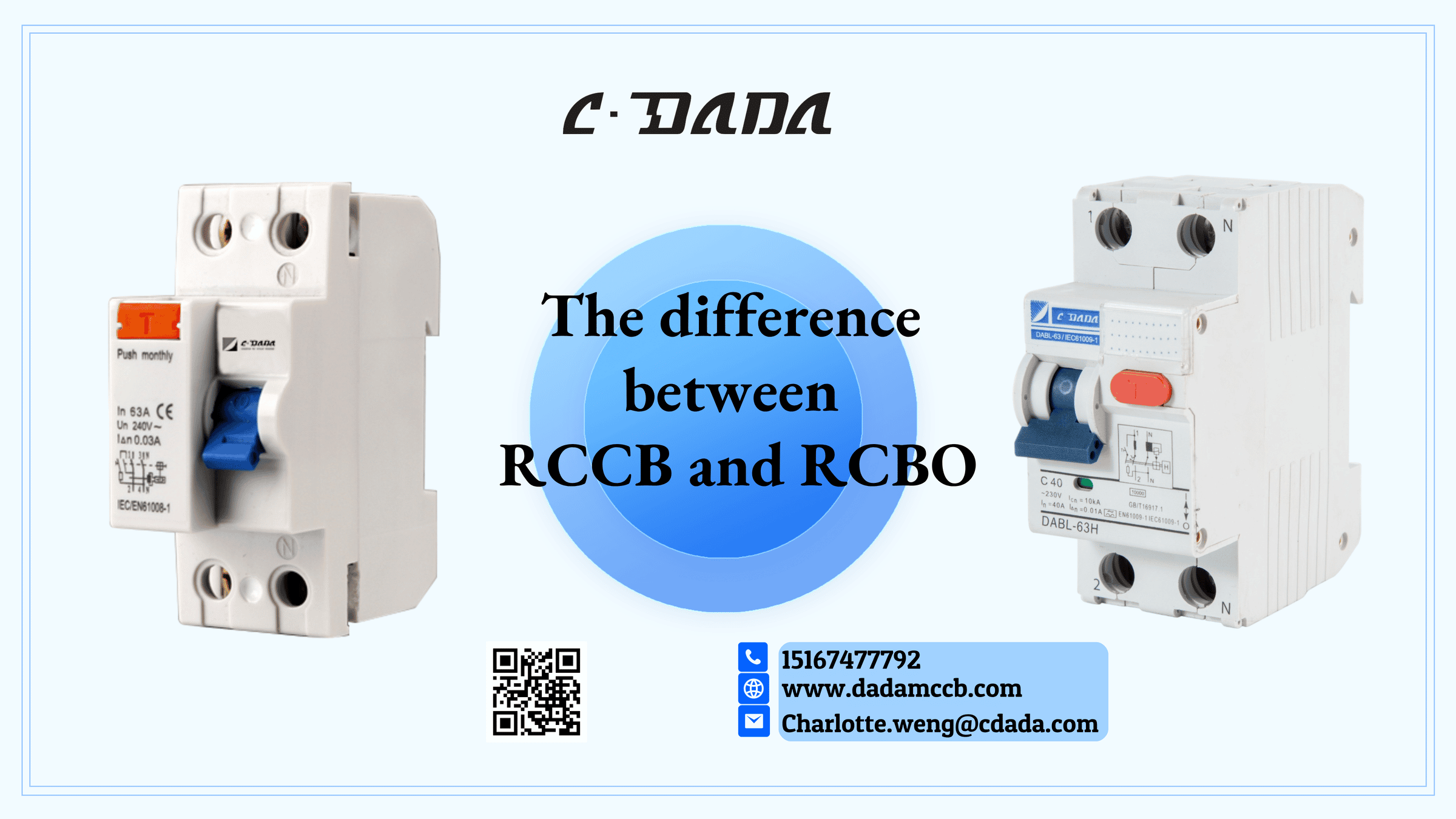

Main differences between RCCB and RCBO

1. **Function**: The main difference lies in their functionality. RCCB focuses only on detecting earth faults, whereas RCBO provides both earth fault protection and overcurrent protection.

2. **Application**: RCCBs are typically used in residential and commercial locations where there is a risk of electric shock. In contrast, RCBOs are typically used in more complex electrical systems that require two forms of protection.

3. **Space Efficiency**: RCBO is more space-efficient as it combines two protection functions into one device, making it suitable for installations with limited space.

4. **Cost**: RCCBs are generally cheaper than RCBOs due to their simpler design. However, the cost-effectiveness of RCBOs should be considered in conjunction with the comprehensive protection features they provide.

in conclusion

In summary, understanding the difference between RCCB and RCBO is essential to ensure the safety and reliability of electrical equipment. Shanghai Dada Electric Co., Ltd. is proud to provide high-quality electrical protection devices that can be tailored to the diverse needs of our customers. Whether you need an RCCB for basic ground fault protection or an RCBO for comprehensive circuit protection, our team is here to assist you and help you make the right choice for your electrical safety needs. To learn more about our products and services, please visit our website or contact us directly. Your safety is our top priority.
